Name: Festo 4165862 Hand lever valve VHEF-HST-B32-G14
Brand: Festo

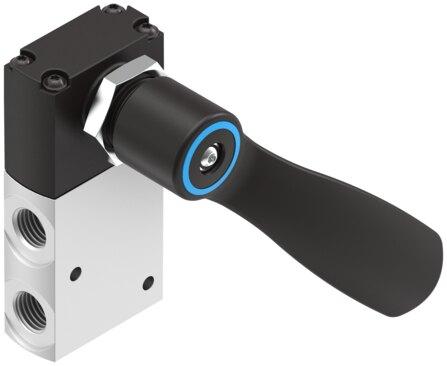

Hand lever valve VHEF-HST-B32-G14

The Festo 4165862 is a 20 mm wide, 3/2-way bistable industrial component featuring a plate seat structural design and a nominal width of 6 mm. This manually actuated valve provides a normal nominal flow rate of 870 l/min through G1/4 pneumatic working ports, operating within a pressure range of -0.095 MPa to 1 MPa. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention, the unit utilizes a soft sealing principle and accommodates compressed air operating media according to ISO 8573-1:2010 [7:-:-] with optional oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4165862
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4165862.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, bistable
Actuation type: Manual
Width: 20 mm
Normal nominal ow rate (normalized to DIN 1343): 870 l/min
Pneumatic working port: G1/4
Operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar
Structural design: Plate seat
Nominal width: 6 mm
Exhaust air function: Adjustable
Application note: Only operate by hand
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting
Type of control: directly
Flow direction: Reversible
Lap: Zero overlap
Max. switching frequency: 0.5 Hz
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Actuating torque: 0.7 Nm
Max. force on actuator: 200 N
Max. transverse load on actuator: 200 N
Product weight: 230 g
Type of mounting: Alternatively:
