Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
4197367

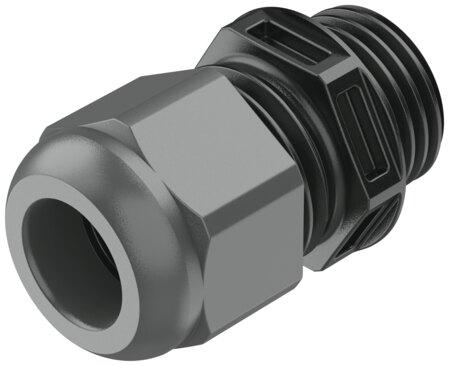

Cable fitting NETC-P-M12
The Festo M12x1.5 industrial component features a black polyamide cable connector with EPDM seals, a product weight of 4 g, and a pack size of 1. It operates within an ambient temperature range of -20 °C to 70 °C and provides an IP68 degree of protection at 5 bar for 30 minutes. This RoHS compliant part adheres to EU RoHS directives, VDMA24364-B2-L LABS conformity, and features a corrosion resistance class (CRC) of 3 for high corrosion stress with cable diameters from 3 mm to 6.5 mm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4197367
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4197367.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -20 °C...70 °C
- Degree of protection
- IP68
- Note on degree of protection
- IP68 at 5 bar for 30 minutes
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- Size
- M12x1.5
- Cable diameter
- 3 mm...6.5 mm
- Color
- Black
- Material for cable connector
- PA
- Seals material
- EPDM
- Product weight
- 4 g
- Pack size
- 1
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4197367. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
