Festo
4233

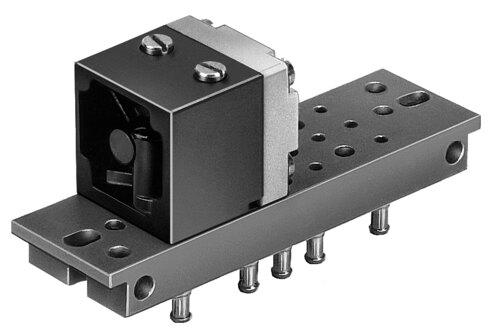

Pneumatic valve VL/O-3-PK-3
The Festo part number 4233 is a 3/2-way monostable open industrial component featuring a plate seat structural design with a nominal width of 2.5 mm and a normal nominal flow rate of 100 l/min. It operates within a pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar) utilizing compressed air as per ISO 8573-1:2010 [7:-:-], offering switching times of 12 ms on and 50 ms off, and includes ATEX certification for zones 1, 2, 21, and 22. This 110 g unit accommodates PK-3 pneumatic working ports and connections, supports mounting on a sub-base, mounting frame, or via through-holes, and incorporates a sub-base constructed from brass and PPS-reinforced materials. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4233
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4233.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Normal nominal ow rate (normalized to DIN 1343)
- 100 l/min
- Pneumatic working port
- PK-3
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Structural design
- Plate seat
- Nominal width
- 2.5 mm
- Switching time off
- 50 ms
- On switching time
- 12 ms
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 110 g
- Type of mounting
- Alternatively: | On sub-base | On mounting frame | With through-hole
- Pneumatic connection 1
- PK-3
- Pneumatic connection 4
- PK-3
- Pneumatic connection 5
- PK-3
- Material of sub-base
- Brass | PPS-reinforced
- Seals material
- NBR
- Housing material
- Polymer | Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4233. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
