4267581

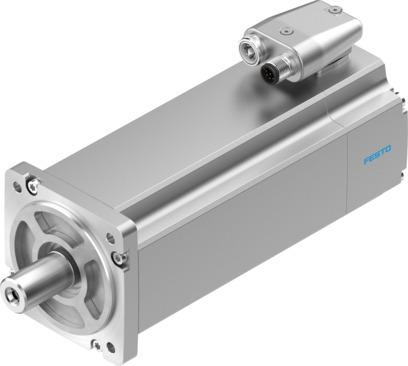

Name: Festo 4267581 Servo motor EMME-AS-80-S-LS-AMXB
Brand: Festo

Servo motor EMME-AS-80-S-LS-AMXB

The Festo part number 4267581 is an industrial component featuring a nominal operating voltage of 360 V DC, a star inside winding switch, 3 pole pairs, a stall torque of 2.8 Nm, and a nominal torque of 2.4 Nm. Built with insulation protection class F and an IP21 degree of protection, it conforms to IEC 60034 and operates within an ambient temperature range of -10 °C to 40 °C. It carries c UL us recognition, the RCM compliance mark, and CE and UKCA markings per applicable EMC, low voltage, and RoHS directives. Submit part number 4267581 with your required quantity and application details to receive an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4267581
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4267581.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -10 °C...40 °C
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 90 %
Conforms to standard: IEC 60034
Insulation protection class: F
Rating class according to EN 60034-1: S1
Degree of protection: IP21
Electrical connection technology: Plug
Note on materials: RoHS-compliant
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 zone III
Certication: RCM compliance mark | c UL us - Recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Nominal operating voltage DC: 360 V
DC nominal voltage: 360 V
Type of winding switch: Star inside
Number of pole pairs: 3
Stall torque: 2.8 Nm
Nominal torque: 2.4 Nm
Peak torque: 11.2 Nm
Nominal rotary speed: 3000 rpm
Max. rotational speed: 4690 rpm
Motor nominal power: 750 W
Continuous stall current: 3.1 A
Motor nominal current: 2.6 A
Peak current: 12.4 A
Motor constants: 0.923 Nm/A

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 4267581. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
