Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
4267583

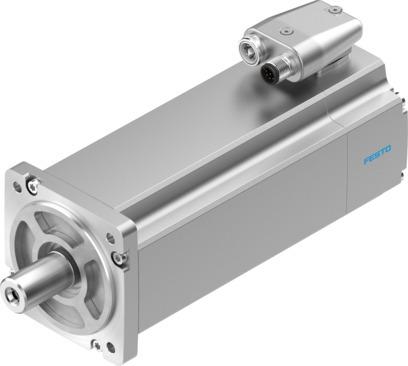

Servo motor EMME-AS-80-SK-LS-AMXB
The Festo industrial component, part number 4267583, operates at a 360 V DC nominal voltage with an internal star winding switch and 3 pole pairs, delivering a stall torque of 2.8 Nm through a DIN 6885 A 6 x 6 x 22 featherkey shaft design. Constructed to IEC 60034 standards with insulation class F, IP21 protection, and S1 rating class per EN 60034-1, this RoHS-compliant unit functions within an ambient temperature range of -10 °C to 40 °C, a storage range of -20 °C to 70 °C, and 0 to 90 percent relative air humidity. It bears RCM compliance, c UL us recognition, and CE and UKCA markings for EMC, low voltage, and RoHS directives, featuring a corrosion resistance class of 0 and VDMA24364 zone III LABS conformity with a plug electrical connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4267583
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4267583.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...40 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- F
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP21
- Featherkey shaft design
- DIN 6885 | A 6 x 6 x 22
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Nominal operating voltage DC
- 360 V
- DC nominal voltage
- 360 V
- Type of winding switch
- Star inside
- Number of pole pairs
- 3
- Stall torque
- 2.8 Nm
- Nominal torque
- 2.4 Nm
- Peak torque
- 11.2 Nm
- Nominal rotary speed
- 3000 rpm
- Max. rotational speed
- 4690 rpm
- Motor nominal power
- 750 W
- Continuous stall current
- 3.1 A
- Motor nominal current
- 2.6 A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4267583. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
