Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
4267585

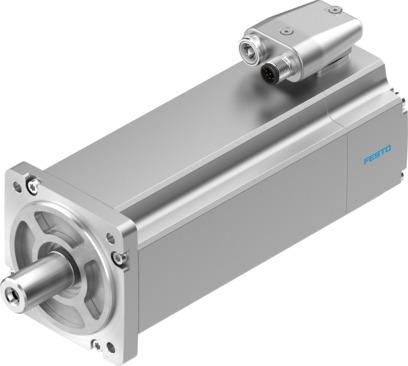

Servo motor EMME-AS-80-S-HS-AMXB
The Festo industrial component, part number 4267585, operates at a nominal DC voltage of 565 V with a star inside winding switch configuration and 3 pole pairs. It delivers a stall torque of 2.8 Nm and a nominal torque of 2.3 Nm under an S1 rating class according to EN 60034-1, conforming to IEC 60034 standards with an insulation protection class F and an IP21 degree of protection. The unit functions within an ambient temperature range of -10 °C to 40 °C, supports storage temperatures from -20 °C to 70 °C, and maintains a relative air humidity of 0 to 90%. Featuring plug electrical connection technology, RoHS-compliant materials, corrosion resistance class CRC 0, and VDMA24364 zone III LABS conformity, it carries CE, UKCA, RCM compliance, and cULus recognized certifications. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4267585
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4267585.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...40 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- F
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP21
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Nominal operating voltage DC
- 565 V
- DC nominal voltage
- 565 V
- Type of winding switch
- Star inside
- Number of pole pairs
- 3
- Stall torque
- 2.8 Nm
- Nominal torque
- 2.3 Nm
- Peak torque
- 11.2 Nm
- Nominal rotary speed
- 3000 rpm
- Max. rotational speed
- 4192 rpm
- Motor nominal power
- 720 W
- Continuous stall current
- 1.8 A
- Motor nominal current
- 1.6 A
- Peak current
- 7.2 A
- Motor constants
- 1.438 Nm/A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4267585. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
