Festo
4267591

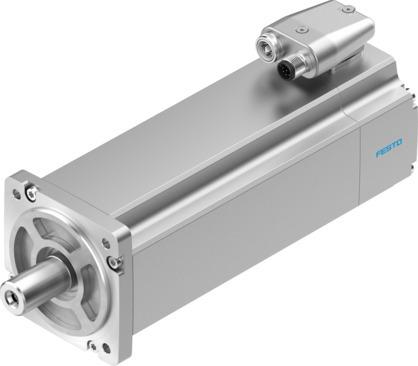

Servo motor EMME-AS-80-MK-LS-AMXB
The Festo 4267591 industrial component features a 360 V DC nominal operating voltage, 3 pole pairs, and a stall torque of 3.5 Nm with a star inside winding switch type and a DIN 6885 A 6 x 6 x 22 featherkey shaft design. Conforming to IEC 60034 standards, it is rated IP21 with insulation protection class F, continuous S1 operation according to EN 60034-1, and operates within an ambient temperature range of -10 °C to 40 °C and 0 to 90 percent relative air humidity. Certifications include RCM compliance and c UL us recognition alongside CE and UKCA markings per EMC, low voltage, and RoHS directives, while material notes indicate RoHS compliance, CRC 0 corrosion resistance, and VDMA24364 zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4267591
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4267591.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -10 °C...40 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90 %
- Conforms to standard
- IEC 60034
- Insulation protection class
- F
- Rating class according to EN 60034-1
- S1
- Degree of protection
- IP21
- Featherkey shaft design
- DIN 6885 | A 6 x 6 x 22
- Electrical connection technology
- Plug
- Note on materials
- RoHS-compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 zone III
- Certication
- RCM compliance mark | c UL us - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Nominal operating voltage DC
- 360 V
- DC nominal voltage
- 360 V
- Type of winding switch
- Star inside
- Number of pole pairs
- 3
- Stall torque
- 3.5 Nm
- Nominal torque
- 3.2 Nm
- Peak torque
- 14 Nm
- Nominal rotary speed
- 3000 rpm
- Max. rotational speed
- 4627 rpm
- Motor nominal power
- 1000 W
- Continuous stall current
- 3.9 A
- Motor nominal current
- 3.7 A
