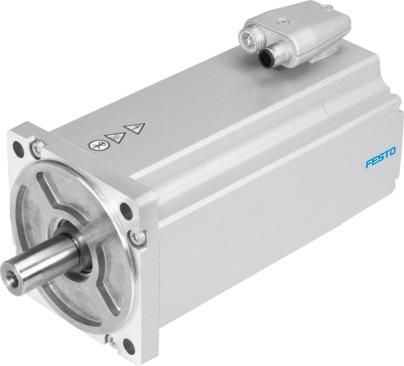

Name: Festo 4267596 Servo motor EMME-AS-100-S-HS-AMX
Brand: Festo

Servo motor EMME-AS-100-S-HS-AMX

The Festo part number 4267596 is an industrial component featuring a nominal operating voltage of 565 V DC, a star inside winding switch, 3 pole pairs, a stall torque of 5.6 Nm, and a nominal torque of 4.8 Nm. It conforms to IEC 60034 standards with an insulation protection class F, S1 rating class per EN 60034-1, IP21 degree of protection, and plug electrical connection technology. Built for environments with a -10 °C to 40 °C ambient temperature and 0 to 90% relative air humidity, it holds RCM and cULus certifications alongside CE, UKCA, and RoHS compliances. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4267596
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4267596.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -10 °C...40 °C
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 90 %
Conforms to standard: IEC 60034
Insulation protection class: F
Rating class according to EN 60034-1: S1
Degree of protection: IP21
Electrical connection technology: Plug
Note on materials: RoHS-compliant
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 zone III
Certication: RCM compliance mark | c UL us - Recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Nominal operating voltage DC: 565 V
DC nominal voltage: 565 V
Type of winding switch: Star inside
Number of pole pairs: 3
Stall torque: 5.6 Nm
Nominal torque: 4.8 Nm
Peak torque: 22.4 Nm
Nominal rotary speed: 3000 rpm
Max. rotational speed: 3910 rpm
Motor nominal power: 1500 W
Continuous stall current: 3.4 A
Motor nominal current: 3 A
Peak current: 13.6 A
Motor constants: 1.6 Nm/A
