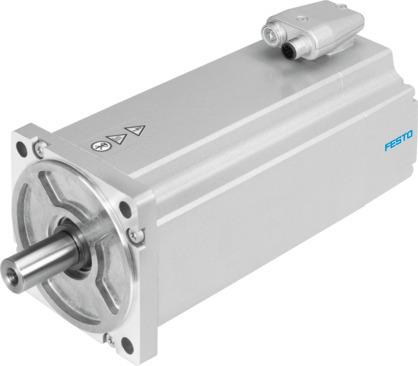

Name: Festo 4267603 Servo motor EMME-AS-100-MK-HS-AMXB
Brand: Festo

Servo motor EMME-AS-100-MK-HS-AMXB

The Festo industrial component, part number 4267603, features a stall torque of 7.5 Nm, three pole pairs, a star inside winding switch type, and a nominal DC operating voltage of 565 V with a DIN 6885 A 6 x 6 x 32 featherkey shaft design. Rated S1 according to EN 60034-1, this IEC 60034-conforming unit operates within an ambient temperature range of -10 °C to 40 °C, a storage temperature range of -20 °C to 70 °C, 0 to 90% relative air humidity, and provides IP21 protection with Class F insulation. It complies with RoHS, VDMA24364 zone III LABS conformity, RCM, c UL us Recognized (OL), and bears CE and UKCA markings for EMC, low voltage, and RoHS directives alongside a CRC 0 corrosion resistance class and plug electrical connection technology. Submit the exact part number, quantity, and application requirements for a formal price quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4267603
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4267603.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -10 °C...40 °C
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 90 %
Conforms to standard: IEC 60034
Insulation protection class: F
Rating class according to EN 60034-1: S1
Degree of protection: IP21
Featherkey shaft design: DIN 6885 | A 6 x 6 x 32
Electrical connection technology: Plug
Note on materials: RoHS-compliant
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 zone III
Certication: RCM compliance mark | c UL us - Recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Nominal operating voltage DC: 565 V
DC nominal voltage: 565 V
Type of winding switch: Star inside
Number of pole pairs: 3
Stall torque: 7.5 Nm
Nominal torque: 6.4 Nm
Peak torque: 30 Nm
Nominal rotary speed: 3000 rpm
Max. rotational speed: 3941 rpm
Motor nominal power: 2000 W
Continuous stall current: 4.6 A
Motor nominal current: 4.1 A
