Festo
4405647

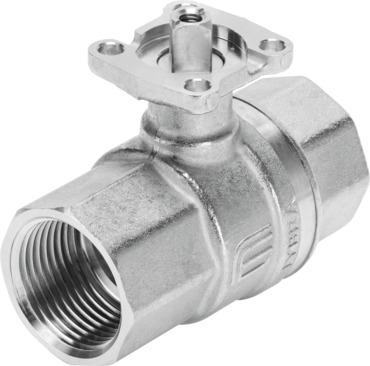

Ball valve VZBM-3/8-RP-40-D-2-F03-B2B3
This Festo 4405647 industrial component is a 2/2-way mechanical ball valve featuring a soft sealing principle, an Rp3/8 fitting connection, and a nominal width DN of 10 with a 10 mm inside diameter. Built to EN 10226-1 and ISO 5211 norms, it supports line installation in any mounting position, a nominal pressure PN of 40, and a flow rate Kv of 9.4 m³/h across a medium temperature range of -20 °C to 130 °C. The RoHS-compliant and VDMA24364 zone III LABS-conformant valve handles compressed air, inert gas, water without vapor, and neutral liquids with a reversible flow direction and a breakaway torque of 3.2 Nm at nominal pressure. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4405647
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4405647.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- Line installation
- Fitting connection
- Rp3/8
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03
- Inside diameter
- 10 mm
- Nominal width DN
- 10
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 40
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 3.2 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Temperature of medium
- -20 °C...130 °C
- Flow rate Kv
- 9.4 m³/h
- Note on materials
- RoHS-compliant
- LABS (PWIS) conformity
- VDMA24364 zone III
- Housing material
- Brass | Nickel-plated
- Material number of housing
- CW617N
- Seals material
- HNBR | PTFE
