Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

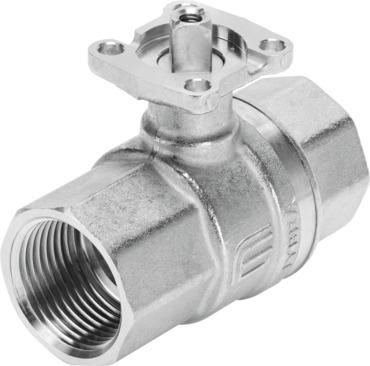

Reference imageConfirm configuration by manufacturer part number.
Festo
4405648
Ball valve VZBM-1/2-RP-25-D-2-F03-B2B3
Engineered with a mechanical actuation type and a soft sealing principle, the Festo 4405648 is a 2-way ball valve featuring an Rp1/2 fitting connection, an inside diameter of 15 mm, and a nominal width DN of 15. This 2/2 valve functions with a reversible flow direction, a nominal pressure PN of 25, a flow rate Kv of 15 m³/h, and a breakaway torque of 4.3 Nm at nominal differential pressure based on EN 10226-1 and ISO 5211 norms. It accommodates a medium temperature range from -15 °C to 90 °C for compressed air, inert gas, water without water vapor, and neutral liquids while utilizing an F03 flange hole pattern for any mounting position via line installation. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4405648
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4405648.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- Line installation
- Fitting connection
- Rp1/2
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03
- Inside diameter
- 15 mm
- Nominal width DN
- 15
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 25
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 4.3 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Temperature of medium
- -15 °C...90 °C
- Flow rate Kv
- 15 m³/h
- Note on materials
- RoHS-compliant
- LABS (PWIS) conformity
- VDMA24364 zone III
- Housing material
- Brass | Nickel-plated
- Material number of housing
- CW617N
- Seals material
- FPM | HNBR | PTFE
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4405648. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
