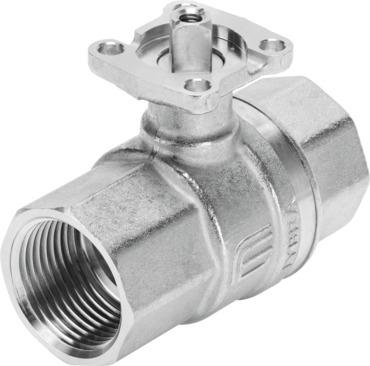

Reference imageConfirm configuration by manufacturer part number.
Festo
4405650
Ball valve VZBM-1-RP-25-D-2-F03-B2B3
The Festo 4405650 is a mechanical 2-way ball valve featuring a soft sealing principle, an inside diameter of 25 mm, and a nominal width DN of 25 with an Rp1 fitting connection. Built on EN 10226-1 and ISO 5211 norms with an F03 flange hole pattern, this 2/2 valve delivers a reversible flow direction and a flow rate Kv of 39 m³/h for compressed air, inert gas, water without water vapor, and neutral liquids within a medium temperature range of -15 °C to 90 °C. It operates at a nominal pressure PN of 25 with a breakaway torque of 5.5 Nm, includes a switching position indication where the slot direction equals the flow direction, and features RoHS-compliant materials with VDMA24364 zone III LABS conformity for any mounting position via line installation. Submit your exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4405650
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4405650.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- Line installation
- Fitting connection
- Rp1
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03
- Inside diameter
- 25 mm
- Nominal width DN
- 25
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 25
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 5.5 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Temperature of medium
- -15 °C...90 °C
- Flow rate Kv
- 39 m³/h
- Note on materials
- RoHS-compliant
- LABS (PWIS) conformity
- VDMA24364 zone III
- Housing material
- Brass | Nickel-plated
- Material number of housing
- CW617N
- Seals material
- FPM | HNBR | PTFE
