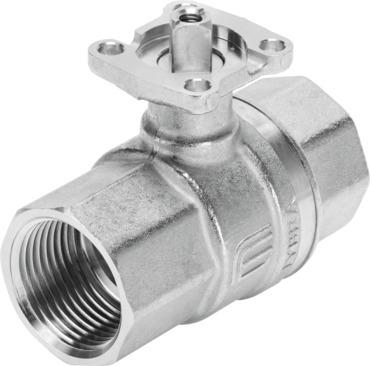

Reference imageConfirm configuration by manufacturer part number.
Festo
4405652
Ball valve VZBM-11/2-RP-25-D-2-F0305-B2B3
The Festo 4405652 is a mechanical 2-way soft-sealing ball valve featuring an Rp1 1/2 fitting connection, a 40 mm inside diameter, and a nominal width DN of 40. Built with a reversible flow direction, an ISO 5211 compatible F03/F05 flange hole pattern, and a PN 25 nominal pressure rating, it operates with a breakaway torque of 9.5 Nm at nominal pressure and handles media temperatures ranging from -15 °C to 90 °C. Compliance with EN 10226-1, RoHS, and VDMA24364 zone III LABS standards allows this component to regulate compressed air, inert gas, neutral liquids, and water without water vapor in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4405652
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4405652.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- Line installation
- Fitting connection
- Rp1 1/2
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03 | F05
- Inside diameter
- 40 mm
- Nominal width DN
- 40
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 25
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 9.5 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Temperature of medium
- -15 °C...90 °C
- Flow rate Kv
- 156 m³/h
- Note on materials
- RoHS-compliant
- LABS (PWIS) conformity
- VDMA24364 zone III
- Housing material
- Brass | Nickel-plated
- Material number of housing
- CW617N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4405652. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
