Festo
4405684

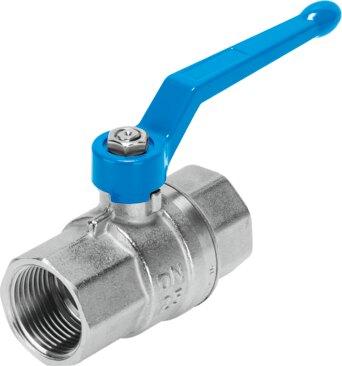

Ball valve VZBM-1/4-RP-50-D-2-M-B2B3
The Festo 4405684 is a mechanical 2-way ball valve featuring a soft sealing principle, a 2/2 valve function, and an Rp1/4 fitting connection based on the EN 10226-1 norm. Constructed with a nickel-plated brass housing and a nominal width DN of 8, this in-line component accommodates a 10 mm inside diameter, a nominal pressure PN of 50, and reversible flow direction for compressed air, inert gas, water, and neutral liquids within a medium temperature range of -15 °C to 120 °C. It provides a Kv flow rate of 6 m³/h, an actuating torque of 7.5 Nm at nominal differential pressure, slot-direction flow position indication, and universal mounting position flexibility, complete with RoHS compliance and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4405684
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4405684.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1/4
- Switching position indication
- Slot direction = ow direction
- Inside diameter
- 10 mm
- Nominal width DN
- 8
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 50
- Actuating torque at differential pressure, nominal pressure, process
- 7.5 Nm
- Based on norm
- EN 10226-1
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Temperature of medium
- -15 °C...120 °C
- Flow rate Kv
- 6 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Brass | Nickel-plated
- Material number of housing
- CW617N
- Seals material
- NBR
