Festo
4405689

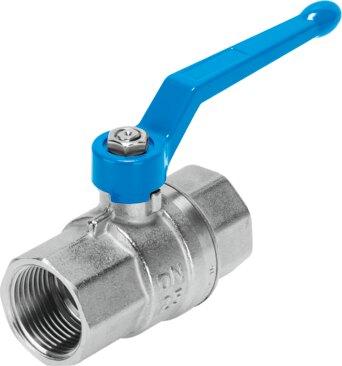

Ball valve VZBM-1-RP-40-D-2-M-B2B3
The Festo 4405689 is an in-line mechanical 2-way ball valve featuring a soft sealing principle, Rp1 fitting connection, and a nominal width DN of 25 with a 25 mm inside diameter. Constructed from nickel-plated brass housing complying with RoHS and VDMA24364 Zone III LABS conformity standards based on EN 10226-1, this 2/2 valve handles compressed air, inert gas, water without water vapor, and neutral liquids at medium temperatures ranging from -15 °C to 120 °C. It offers a reversible flow direction, a Kv flow rate of 39 m³/h, a nominal pressure PN of 40, an actuating torque of 25 Nm at differential and nominal pressure, and a switching position indication where the slot direction matches the flow direction for mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4405689
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4405689.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1
- Switching position indication
- Slot direction = ow direction
- Inside diameter
- 25 mm
- Nominal width DN
- 25
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 40
- Actuating torque at differential pressure, nominal pressure, process
- 25 Nm
- Based on norm
- EN 10226-1
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Temperature of medium
- -15 °C...120 °C
- Flow rate Kv
- 39 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Brass | Nickel-plated
- Material number of housing
- CW617N
- Seals material
- NBR
