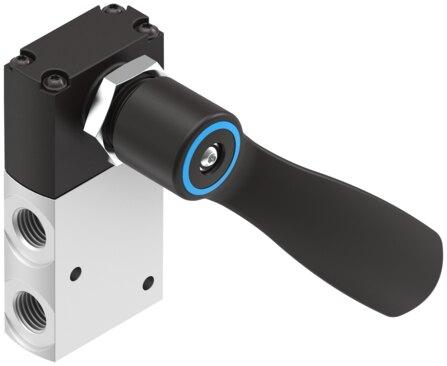

Name: Festo 4414854 Hand lever valve VHEF-HST-M32-M-N14
Brand: Festo

Hand lever valve VHEF-HST-M32-M-N14

The Festo part number 4414854 is a 20 mm wide industrial component featuring a 3/2 open/closed, monostable valve function with direct manual actuation and a mechanical spring reset method. Engineered with a plate seat structural design and soft sealing principle, this unit provides a normal nominal flow rate of 870 l/min through 1/4 NPT pneumatic working ports and an adjustable exhaust air function. It operates within a pressure range of -0.095 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:-:-], supports ATEX explosion prevention and protection for Zones 1, 2, 21, and 22, and permits oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4414854
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4414854.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2, open/closed, monostable
Actuation type: Manual
Width: 20 mm
Normal nominal ow rate (normalized to DIN 1343): 870 l/min
Pneumatic working port: 1/4 NPT
Operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar
Structural design: Plate seat
Reset method: Mechanical spring
Nominal width: 6 mm
Exhaust air function: Adjustable
Application note: Only operate by hand
Sealing principle: Soft
Mounting position: Any
Type of control: directly
Flow direction: Reversible
Lap: Zero overlap
Max. switching frequency: 0.5 Hz
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Actuating torque: 0.6 Nm
Max. force on actuator: 200 N
Max. transverse load on actuator: 200 N
Product weight: 230 g
Type of mounting: Alternatively:
