Festo
4448222

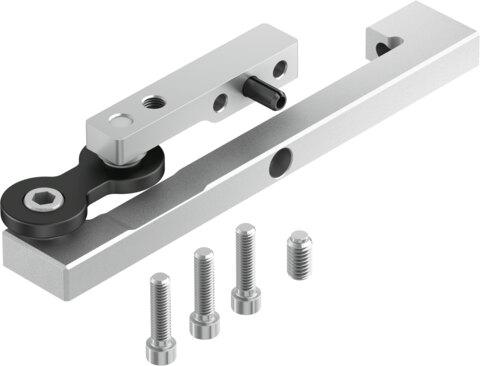

Moment compensator DARD-L8-40-S
The Festo 4448222 industrial component is a 32/40 size part featuring an anodized aluminum adapter and galvanized steel screws with a total product weight of 109 g. It operates within an ambient temperature range of 0 °C to 60 °C and accommodates a radial deviation of +/- 2.5 mm, with a long-term maximum permissible load in the direction of force of +/- 1400 N and a short-term maximum permissible load of +/- 3000 N. Built with CRC 1 low corrosion stress resistance and VDMA24364-B1/B2-L LABS conformity, the materials are RoHS compliant and free of copper. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4448222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4448222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32/40
- Radial deviation +/-
- 2.5 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Short-term maximum permissible load in direction of force +/-
- 3000 N
- Long-term maximum permissible load in direction of force +/-
- 1400 N
- Product weight
- 109 g
- Note on materials
- RoHS compliant | Free of copper
- Adapter material
- Anodized aluminum
- Material of screws
- Galvanized steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4448222. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
