Reference imageConfirm configuration by manufacturer part number.
Festo
4451858

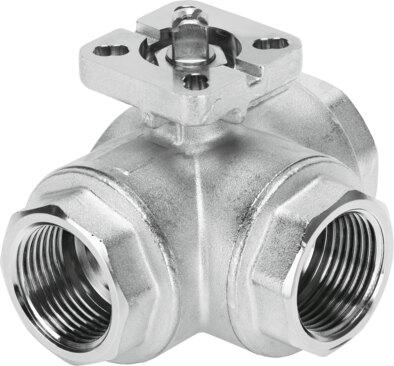

Ball valve VZBM-11/4-RP-40-F-3T-F0405-B2B3
The Festo 4451858 is a mechanical 3-way ball valve featuring a T-hole structural design, soft sealing principle, and a nominal width DN of 32 with a 32 mm inside diameter. Built for in-line installation in any mounting position, this 3/2 valve accommodates compressed air, inert gas, water without water vapor, and neutral liquids across a medium temperature range of -20 °C to 130 °C. It is rated for a nominal pressure PN of 40, provides a breakaway torque of 16.7 Nm at nominal pressure differential, and features F04 and F05 flange hole patterns based on ISO 5211 alongside Rp1 1/4 fitting connections conforming to EN 10226-1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4451858
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4451858.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | T hole
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1 1/4
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F04 | F05
- Inside diameter
- 32 mm
- Nominal width DN
- 32
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 40
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 16.7 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Temperature of medium
- -20 °C...130 °C
- Flow rate Kv type T corner
- 121 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Brass | Nickel-plated
