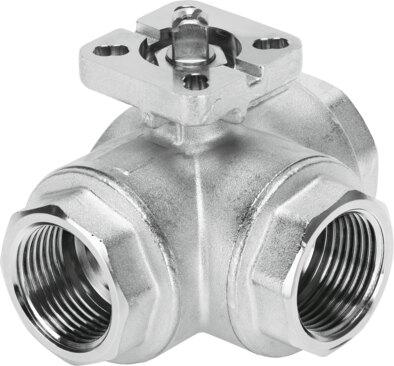

Reference imageConfirm configuration by manufacturer part number.
Festo
4451861
Ball valve VZBM-1/4-RP-40-F-3T-F03-B2B3
The Festo 4451861 is a mechanical 3-way ball valve featuring a T-hole structural design, a soft sealing principle, and a 3/2 valve function with a nominal width DN of 8 and an 8 mm inside diameter. Conforming to EN 10226-1 and ISO 5211 norms with an F03 flange hole pattern, this in-line component accommodates any mounting position via Rp1/4 fitting connections and operates with a nominal pressure PN of 40, a breakaway torque of 6 Nm at nominal pressure, and a reversible T-corner flow rate Kv of 5.9 cubic meters per hour. It processes compressed air, inert gas, water without water vapor, and neutral liquids across a medium temperature range of -20 °C to 130 °C, utilizing slot direction flow indication and featuring RoHS-compliant materials with VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4451861
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4451861.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | T hole
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1/4
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03
- Inside diameter
- 8 mm
- Nominal width DN
- 8
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 40
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 6 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Temperature of medium
- -20 °C...130 °C
- Flow rate Kv type T corner
- 5.9 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Brass | Nickel-plated
