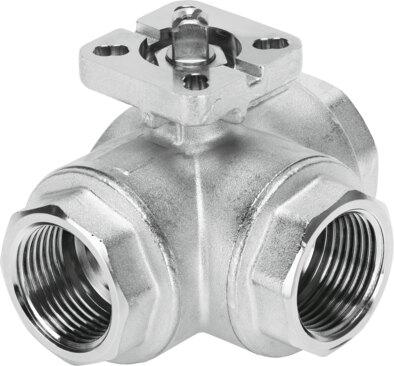

Reference imageConfirm configuration by manufacturer part number.
Festo
4451866
Ball valve VZBM-3/4-RP-40-F-3L-F03-B2B3
This Festo 4451866 industrial component is a 3-way mechanical ball valve featuring an L bore, a soft sealing principle, and an Rp3/4 fitting connection based on EN 10226-1 and ISO 5211 norms. Engineered with a nominal width DN of 20, a nominal pressure PN of 40, and an inside diameter of 17.6 mm, it supports reversible flow directions for compressed air, inert gas, water without water vapor, and neutral liquids across a medium temperature range of -20 °C to 130 °C. The unit includes an F03 flange hole pattern, an 8 Nm breakaway torque at nominal pressure, a flow rate Kv type L of 41 m³/h, and a slot direction matching the flow direction for switching position indication. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4451866
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4451866.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | L bore
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp3/4
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F03
- Inside diameter
- 17.6 mm
- Nominal width DN
- 20
- Valve function
- 3/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 40
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 8 Nm
- Based on norm
- EN 10226-1 | ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Temperature of medium
- -20 °C...130 °C
- Flow rate Kv type L
- 41 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Brass | Nickel-plated
