Festo
4468

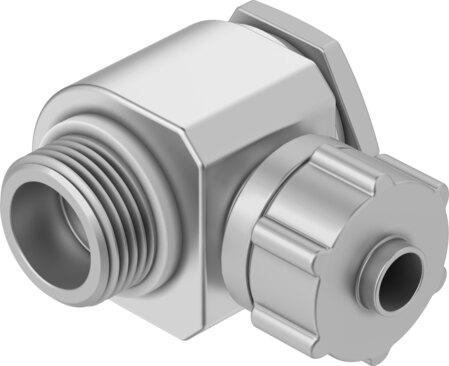

Elbow quick connector LCK-M5-PK-3
The Festo part number 4468 is an L-shaped industrial component featuring an M5 external thread for pneumatic connection 1 and a barbed fitting with a nut for 3 mm inside diameter pneumatic tubing at connection 2. This assembly operates within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, or -13.775 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:-:-], and accommodates an ambient temperature range of -10 °C to 60 °C with lubricated operation possible. Constructed with a galvanized steel hollow bolt, die-cast zinc swivel joint, NBR and high-alloy stainless steel sealing ring, and an anodized wrought aluminum alloy union nut, the unit requires a nominal tightening torque of 1.33 Nm with a ±20% tolerance. Supplied in a pack size of 10 with a nominal width of 2.4 mm, it features a sealing ring type of seal on the screwed plug, any mounting position, a corrosion resistance class of 1, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4468
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4468.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.4 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 1.33 Nm
- Tolerance for nominal tightening torque
- ±20%
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm | for barbed tting, inside diameter 3 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Sealing ring material
- NBR | high-alloy stainless steel
- Hollow bolt material
- Galvanized steel
- Swivel joint material
- Die-cast zinc
