Festo
4486

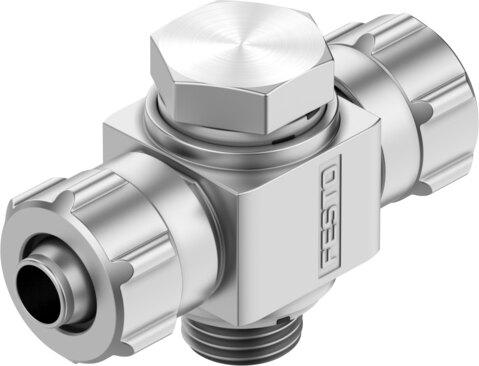

T quick connector TCK-1/8-PK-6
The Festo part number 4486 is a T-shaped industrial component featuring a nominal width of 4.9 mm, an external thread G1/8 pneumatic connection 1, and a pneumatic connection 2 for 8 mm outside diameter pneumatic tubing or 6 mm inside diameter barbed fittings with a nut. Constructed with a die-cast zinc housing, anodized wrought aluminum alloy hollow bolts and union nuts, and PA-reinforced and TPE-U(PU) sealing rings, this component operates across a temperature range of -10 °C to 60 °C and an operating pressure of -0.095 MPa to 1 MPa. It utilizes compressed air as per ISO 8573-1:2010 [7:-:-] with lubricated operation possible, features a nominal tightening torque of 3.5 Nm with a ±20% tolerance, and includes a sealing ring on the screwed plug with any mounting position. This RoHS-compliant part provides a CRC of 1 for low corrosion stress, VDMA24364-B1/B2-L LABS conformity, and comes in a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4486
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4486.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4.9 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 3.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm | for barbed tting, inside diameter 6 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Sealing ring material
- PA-reinforced | TPE-U(PU)
- Housing material
- Die-cast zinc
- Hollow bolt material
- Wrought aluminum alloy, anodized
- Swivel joint material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4486. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
