4503

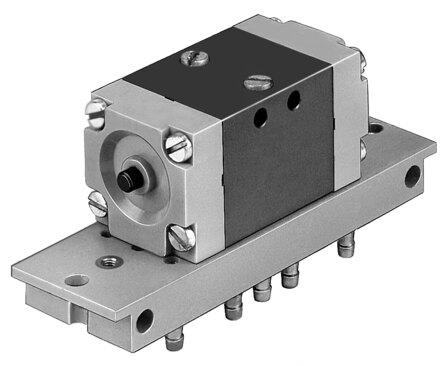

Name: Festo 4503 Pneumatic valve J-5-PK-3
Brand: Festo

Pneumatic valve J-5-PK-3

The Festo part number 4503 is a 5/2-way bistable industrial component featuring a plate seat structural design, a nominal width of 2.5 mm, and a normal nominal flow rate of 105 l/min. Operating at a pressure range of 1 bar to 8 bar with a 9 ms changeover time, this unit utilizes PK-3 pneumatic working ports for connections 1 through 5 and functions with compressed air conforming to ISO 8573-1:2010 [7:-:-]. Constructed with NBR seals and a brass and PPS-reinforced sub-base, the 130 g device supports mounting via through-hole, sub-base, or mounting frame while maintaining VDMA24364-B1/B2-L LABS conformity and RoHS compliance across an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4503
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4503.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Normal nominal ow rate (normalized to DIN 1343): 105 l/min
Pneumatic working port: PK-3
Operating pressure: 1 bar...8 bar
Structural design: Plate seat
Nominal width: 2.5 mm
Changeover time: 9 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: 0 °C...60 °C
Product weight: 130 g
Type of mounting: Alternatively: | On sub-base | On mounting frame | With through-hole
Pneumatic connection 1: PK-3
Pneumatic connection 2: PK-3
Pneumatic connection 3: PK-3
Pneumatic connection 4: PK-3
Pneumatic connection 5: PK-3
Note on materials: RoHS compliant
Material of sub-base: Brass | PPS-reinforced
Seals material: NBR
Housing material: Polymer | Die-cast zinc

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 4503. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
