Festo
4514740
Pneumatic valve VOFC-LT-M32C-MC-G14-F19

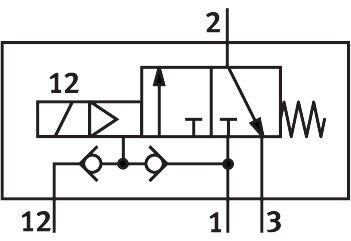

The Festo 4514740 is a pilot-controlled piston poppet industrial component featuring a 3/2-way closed, monostable valve function with an electrical actuation type and a mechanical spring reset method. Designed with a 51 mm width, a 6 mm nominal width, and G1/4 pneumatic working ports, this unit achieves a normal nominal flow rate of 703 l/min under an operating pressure range of 0.1 MPa to 0.8 MPa (1 bar to 8 bar, or 14.5 psi to 116 psi) with internal or external pilot air supply. It provides an IP65 degree of protection, hard sealing principle, non-reversible flow direction, safe exhausting safety function, and SIL 3 certification for both high and low demand modes issued by TÜV 968/V 1251.00/24. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4514740
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4514740.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 51 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 703 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Structural design
- Pilot-controlled piston poppet valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Certicate issuing authority
- TÜV 968/V 1251.00/24
- Nominal width
- 6 mm
- Sealing principle
- Hard
- Mounting position
- Any
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Safety function
- Safe exhausting
- Safety integrity level (SIL)
- Up to SIL 3 high demand mode | Up to SIL 3 low demand mode
- Information on operating pressure
- 0 – 0.8 bar with external pilot air
- Flow rate for piston valve pressurization
- 0.64 m³/h
- Flow rate for piston valve exhausting
- 1.46 m³/h
- Standard nominal ow rate 2-3
- 1596 l/min
- Switching time off
- 18 ms
- On switching time
- 24 ms
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
