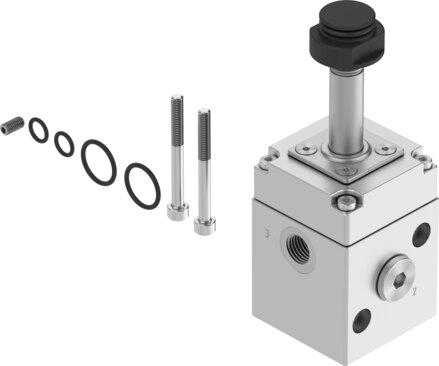

Reference imageConfirm configuration by manufacturer part number.
Festo
4514745
Pneumatic valve VOFC-LT-M32C-MC-FGP14-F19A
The Festo 4514745 is a pilot-controlled piston poppet industrial component featuring a 3/2-way closed monostable valve function, electrical actuation, and a 51 mm width. It delivers a normal nominal flow rate of 595 l/min through G1/4 sub-base pneumatic working ports across an operating pressure range of 1 bar to 8 bar. Built with a hard sealing principle, a mechanical spring reset method, and an IP65 degree of protection, this unit supports safe exhausting functions up to SIL 3 in high and low demand modes under TÜV certificate 968/V 1251.00/24. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4514745
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4514745.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 51 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 595 l/min
- Pneumatic working port
- Sub-base | G1/4
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Structural design
- Pilot-controlled piston poppet valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Certicate issuing authority
- TÜV 968/V 1251.00/24
- Nominal width
- 6 mm
- Sealing principle
- Hard
- Mounting position
- Any
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- External | Internal
- Flow direction
- Non-reversible
- Safety function
- Safe exhausting
- Safety integrity level (SIL)
- Up to SIL 3 high demand mode | Up to SIL 3 low demand mode
- Information on operating pressure
- 0 – 0.8 bar with external pilot air
- Flow rate for piston valve pressurization
- 0.54 m³/h
- Flow rate for piston valve exhausting
- 0.98 m³/h
- Standard nominal ow rate 2-3
- 1066 l/min
- Switching time off
- 18 ms
- On switching time
- 24 ms
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4514745. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
