Festo
4514929

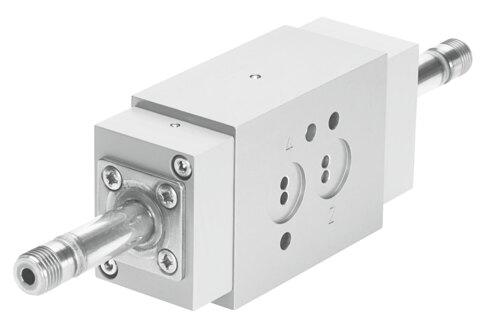

Pneumatic valve VOFC-L-B52-FG14-F19
The Festo 4514929 is a 5/2-way bistable industrial component featuring a piloted piston gate valve with a 40 mm width and a 6 mm nominal width. Utilizing internal pilot air supply with a soft sealing principle, this electrical actuator delivers a normal nominal flow rate of 989 l/min through sub-base G1/4 pneumatic working ports at an operating pressure range of 0.25 MPa to 0.8 MPa. It achieves an on switching time of 26 ms and an off switching time of 22 ms within an IP65-rated enclosure that supports any mounting position and non-reversible flow direction. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4514929
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4514929.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 40 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 989 l/min
- Pneumatic working port
- Sub-base | G1/4
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Structural design
- Piston gate valve
- Degree of protection
- IP65
- Nominal width
- 6 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Flow rate for piston valve pressurization
- 1.08 m³/h
- Flow rate for piston valve exhausting
- 1.08 m³/h
- Standard nominal ow rate 2-3
- 978 l/min
- Switching time off
- 22 ms
- On switching time
- 26 ms
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:2:2]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -25 °C...60 °C
- Ambient temperature
- -25 °C...60 °C
- Product weight
- 680 g
