Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
4514930

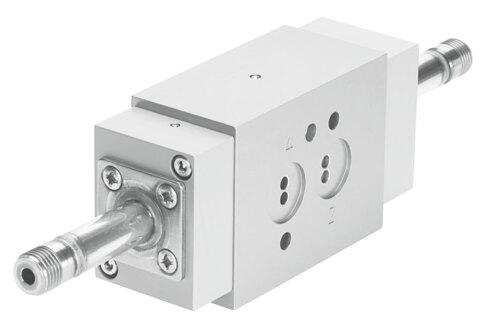

Pneumatic valve VOFC-L-B52-FG14-F19A
The Festo 4514930 is a 40 mm wide industrial component featuring a bistable 5/2-way valve function with electrical actuation and piloted control. Built with a piston gate valve structural design and soft sealing principle, it delivers a normal nominal flow rate of 989 l/min through G1/4 sub-base pneumatic working ports across an operating pressure range of 2.5 bar to 8 bar. This IP65-rated unit supports any mounting position with internal pilot air supply, non-reversible flow direction, and specific switching times of 26 ms on and 22 ms off. Request a quote for this exact part number by submitting your required quantity and application specifications.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4514930
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4514930.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 40 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 989 l/min
- Pneumatic working port
- Sub-base | G1/4
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Structural design
- Piston gate valve
- Degree of protection
- IP65
- Nominal width
- 6 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Flow rate for piston valve pressurization
- 1.08 m³/h
- Flow rate for piston valve exhausting
- 1.08 m³/h
- Standard nominal ow rate 2-3
- 978 l/min
- Switching time off
- 22 ms
- On switching time
- 26 ms
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:2:2]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -25 °C...60 °C
- Ambient temperature
- -25 °C...60 °C
- Product weight
- 680 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4514930. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
