Festo
4522

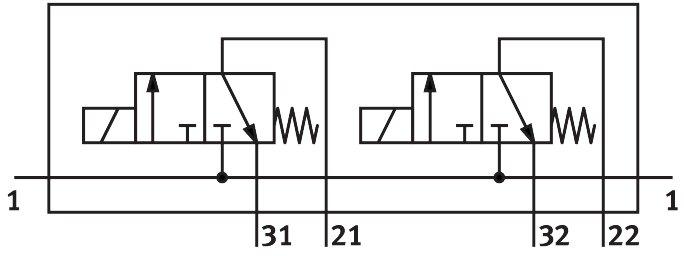

Air solenoid valve BMFH-2-3-M5
The Festo part number 4522 is a 2x3/2 closed, monostable industrial component featuring electrical actuation, a directly controlled type of control, and a nominal width of 1.3 mm with a normal nominal flow rate of 50 l/min normalized to DIN 1343. This poppet valve with spring return utilizes a soft sealing principle, mechanical spring reset method, and an M5 pneumatic working port, operating at pressures from 0 MPa to 0.8 MPa (0 bar to 8 bar) with compressed air as per ISO 8573-1:2010 [7:-:-]. It delivers a pick-up power consumption of 7.5 W and holding power consumption of 6 W, supports an IP65 degree of protection, and functions within a medium temperature range of -10 °C to 60 °C and ambient temperatures from -5 °C to 40 °C with a total product weight of 245 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4522
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4522.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Normal nominal ow rate (normalized to DIN 1343)
- 50 l/min
- Pneumatic working port
- M5
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 1.3 mm
- Sealing principle
- Soft
- Max. no. of valve positions
- 2
- Type of control
- directly
- Pick-up power consumption
- 7.5 W
- Holding power consumption
- 6 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -5 °C...40 °C
- Product weight
- 245 g
- Electrical connection
- Plug
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- M5
- Pneumatic connection 3
- M5
- Housing material
- Aluminum
