Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

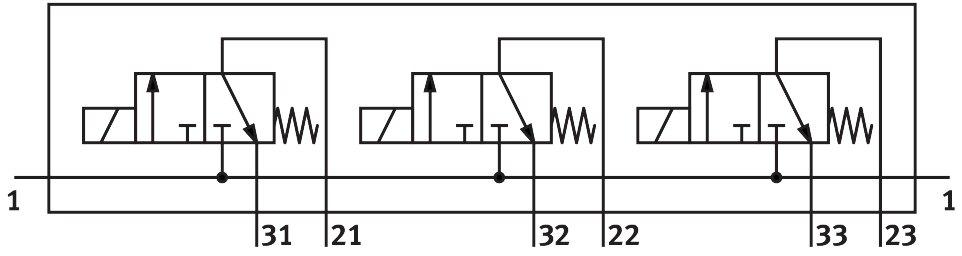

Reference imageConfirm configuration by manufacturer part number.
Festo
4523
Air solenoid valve BMFH-3-3-M5
The Festo 4523 is a direct-controlled 3x3/2 closed, monostable industrial component featuring a poppet valve structural design with a mechanical spring reset method and soft sealing principle. This electrical-actuated valve delivers a normal nominal flow rate of 50 l/min through an M5 pneumatic working port across an operating pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar). Weighing 350 g with an IP65 degree of protection, the unit operates on compressed air matching ISO 8573-1:2010 [7:-:-] at medium temperatures from -10 °C to 60 °C and ambient temperatures from -5 °C to 40 °C, consuming 7.5 W at pick-up and 6 W during holding. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4523
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4523.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3x3/2 closed, monostable
- Actuation type
- Electrical
- Normal nominal ow rate (normalized to DIN 1343)
- 50 l/min
- Pneumatic working port
- M5
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 1.3 mm
- Sealing principle
- Soft
- Max. no. of valve positions
- 3
- Type of control
- directly
- Pick-up power consumption
- 7.5 W
- Holding power consumption
- 6 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -5 °C...40 °C
- Product weight
- 350 g
- Electrical connection
- Plug
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- M5
- Pneumatic connection 3
- M5
- Housing material
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4523. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
