Festo
4526

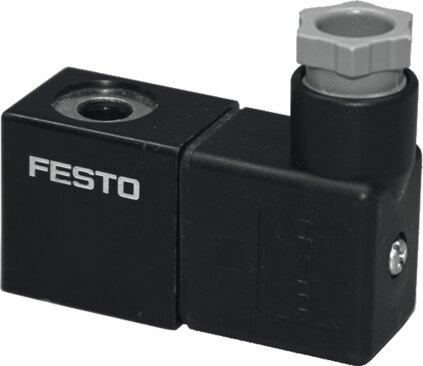

Solenoid coil MSFG-12
The Festo part number 4526 is an industrial component featuring a 12 V DC, 4.1 W coil with copper winding and a 100% duty cycle with a minimum pick-up time of 10 ms. Built with a Duroplast, copper, and steel solenoid coil, this 55 g unit offers IP65 protection, VDMA24364-C1-L LABS conformity, and RoHS compliant materials designed for operation in ambient temperatures ranging from -5 °C to 40 °C. It includes a 3-pin electrical connection with plug tags following the Festo standard for MSSD-F, permits voltage fluctuations of +/- 10%, and utilizes knurled nut mounting in any position with a maximum socket tightening torque of 0.4 Nm. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4526
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4526.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Switching position indication
- No
- Min. pick-up time
- 10 ms
- Duty cycle
- 100%
- Coil characteristics
- 12 V DC: 4.1 W
- Permissible voltage uctuations
- +/- 10%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...40 °C
- Max. tightening torque of socket
- 0.4 Nm
- Product weight
- 55 g
- Electrical connection
- 3-pin | Plug ags with connection diagram as per Festo standard for MSSD-F
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Solenoid coil material
- Duroplast | Copper | Steel
- Material of winding
- Copper
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4526. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
