4527

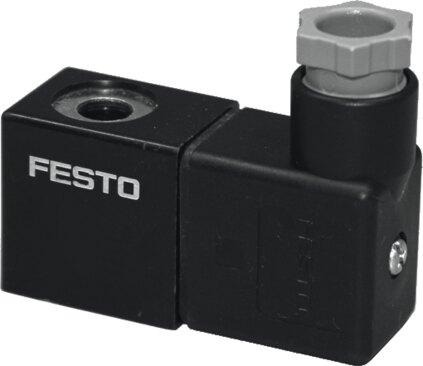

Name: Festo 4527 Solenoid coil MSFG-24/42-50/60
Brand: Festo

Solenoid coil MSFG-24/42-50/60

The Festo 4527 is an industrial component featuring a 100% duty cycle, a minimum pick-up time of 10 ms, and a power factor cos φ of 0.7. Weighing 55 g, this Duroplast, copper, and steel solenoid coil provides an IP65 degree of protection, operates within an ambient temperature range of -5 °C to 40 °C, and mounts in any position using a knurled nut. Electrical connection is achieved via a 3-pin plug tag with a connection diagram as per Festo standard for MSSD-F, accommodating 24 V DC at 4.5 W or 42 V AC (50/60 Hz) with an initial power of 9.0 VA and holding power of 7.0 VA. Please submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4527
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4527.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Switching position indication: No
Min. pick-up time: 10 ms
Duty cycle: 100%
Power factor cos {phi}: 0.7
Coil characteristics: 24 V DC: 4.5 W | 42 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA
Permissible frequency uctuations: +/- 5%
Permissible voltage uctuations: +/- 10%
LABS (PWIS) conformity: VDMA24364-C1-L
Degree of protection: IP65
Ambient temperature: -5 °C...40 °C
Max. tightening torque of socket: 0.4 Nm
Product weight: 55 g
Electrical connection: 3-pin | Plug ags with connection diagram as per Festo standard for MSSD-F
Type of mounting: With knurled nut
Note on materials: RoHS compliant
Solenoid coil material: Duroplast | Copper | Steel
Material of winding: Copper

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 4527. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
