Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

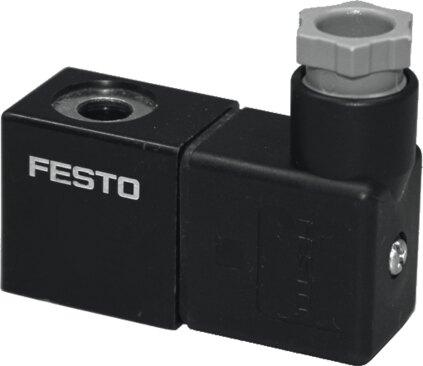

Reference imageConfirm configuration by manufacturer part number.
Festo
4534
Solenoid coil MSFW-24-50/60
The Festo 4534 is an industrial component featuring a 24 V AC 50/60 Hz solenoid coil with an initial power of 9.0 VA, holding power of 7.0 VA, and a power factor cos phi of 0.7. Weighing 55 g, this RoHS compliant part incorporates a 100% duty cycle, a minimum pick-up time of 10 ms, and operates within an ambient temperature range of -5 °C to 40 °C with IP65 degree of protection. It utilizes a 3-pin electrical connection with plug tags for MSSD-F, mounts in any position via a knurled nut, and requires a maximum tightening torque of 0.4 Nm for the socket. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4534
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4534.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Switching position indication
- No
- Min. pick-up time
- 10 ms
- Duty cycle
- 100%
- Power factor cos {phi}
- 0.7
- Coil characteristics
- 24 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA
- Permissible frequency uctuations
- +/- 5%
- Permissible voltage uctuations
- +/- 10%
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Degree of protection
- IP65
- Ambient temperature
- -5 °C...40 °C
- Max. tightening torque of socket
- 0.4 Nm
- Product weight
- 55 g
- Electrical connection
- 3-pin | Plug ags with connection diagram as per Festo standard for MSSD-F
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Solenoid coil material
- Duroplast | Copper | Steel
- Material of winding
- Copper
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4534. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
