Festo
4562

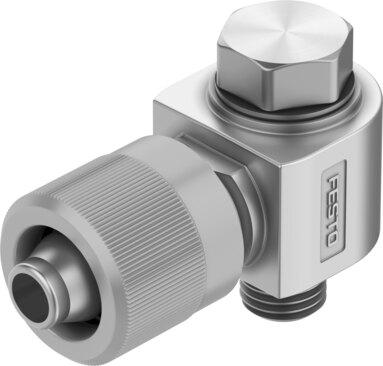

Elbow quick connector LCK-M5-PK-4
The Festo part number 4562 is an L-shaped industrial component featuring a 2.4 mm nominal width, an external thread M5 pneumatic connection 1, and a pneumatic connection 2 for 6 mm outside diameter tubing or 4 mm inside diameter barbed fittings with a nut. Operating within a pressure range of -0.095 MPa to 1 MPa and temperatures from -10 °C to 60 °C, this unit utilizes compressed air in accordance with ISO 8573-1:2010 [7:-:-] and allows for lubricated operation. Constructed with a galvanized steel hollow bolt, die-cast zinc swivel joint, NBR and high-alloy stainless steel sealing ring, and an anodized wrought aluminum alloy union nut, it features a corrosion resistance class of 1 and a nominal tightening torque of 1.33 Nm with a ±20% tolerance. This pack size of 10 components is supplied with a sealing ring on the screwed plug, offers any mounting position, complies with RoHS, and conforms to VDMA24364-B1/B2-L LABS requirements. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4562
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4562.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.4 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 1.33 Nm
- Tolerance for nominal tightening torque
- ±20%
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm | for barbed tting, inside diameter 4 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Sealing ring material
- NBR | high-alloy stainless steel
- Hollow bolt material
- Galvanized steel
- Swivel joint material
- Die-cast zinc
