Festo
4563

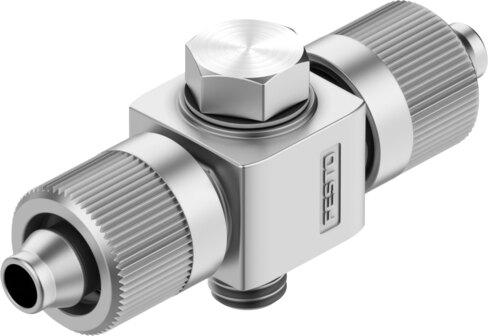

T quick connector TCK-M5-PK-4
The Festo part number 4563 is a T-shape industrial component featuring a nominal width of 2 mm, an external thread M5 for pneumatic connection 1, and a barbed fitting with nut for 4 mm inside diameter pneumatic tubing alongside a 6 mm outside diameter connection for pneumatic connection 2. This assembly incorporates a die-cast zinc housing, a galvanized steel hollow bolt, an anodized wrought aluminum alloy union nut, and a sealing ring constructed from NBR and high-alloy stainless steel with a sealing ring type on the screwed plug. Operating across a temperature range of -10 °C to 60 °C, it handles compressed air per ISO 8573-1:2010 [7:-:-] with lubricated operation possible at an operating pressure spanning -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi). The unit offers a nominal tightening torque of 1.33 Nm with a ±20% tolerance, any mounting position, a Corrosion Resistance Class of 1, VDMA24364-B1/B2-L LABS conformity, and RoHS compliance, and is supplied in a pack size of 10. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4563
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4563.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 1.33 Nm
- Tolerance for nominal tightening torque
- ±20%
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm | for barbed tting, inside diameter 4 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Sealing ring material
- NBR | high-alloy stainless steel
- Housing material
- Die-cast zinc
- Hollow bolt material
- Galvanized steel
- Swivel joint material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4563. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
