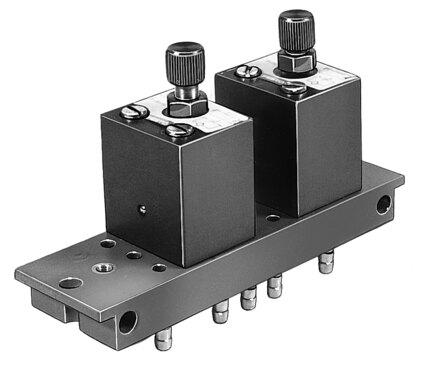

Reference imageConfirm configuration by manufacturer part number.
Festo
4566
One-way flow control valve GRF-PK-3X2
The Festo 4566 is an industrial component featuring a one-way flow control function with PK-3 pneumatic connections on both ports and a standard nominal flow rate of 45 l/min in both flow control and non-return directions. Constructed with a wrought aluminum alloy housing, a brass adjusting screw, and a through-hole mounting design, this part operates within a pressure range of 0.5 bar to 8 bar and an ambient temperature range of -10 °C to 60 °C. It accommodates compressed air as per ISO 8573-1:2010 [7:-:-], allows operation with oil lubrication, complies with VDMA24364-B1/B2-L LABS conformity, weighs 145 g, and can be installed in any mounting position using its knurled screw adjusting element. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4566
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4566.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- One-way ow control function
- Pneumatic connection 1
- PK-3
- Pneumatic connection 2
- PK-3
- Adjusting element
- Knurled screw
- Type of mounting
- With through-hole
- Standard nominal ow rate in ow control direction
- 45 l/min
- Standard nominal ow rate in non-return direction
- 45 l/min
- Operating pressure
- 0.5 bar...8 bar
- Ambient temperature
- -10 °C...60 °C
- Housing material
- Wrought aluminum alloy
- Mounting position
- Any
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Product weight
- 145 g
- Material of adjusting screw
- Brass
