Festo
4577

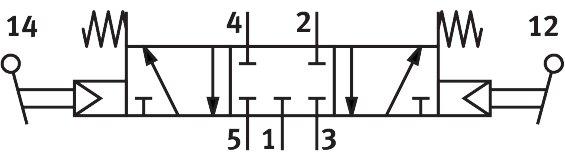

Toggle lever valve H-5/3-1/4
The Festo 4577 is a manually actuated 5/3-way closed industrial component featuring a piloted type of control and a non-reversible flow direction with soft sealing. This unit operates within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar), achieves a normal nominal flow rate of 680 l/min at a nominal width of 7 mm, and utilizes G1/4 pneumatic working ports across connections 1, 2, and 3. Incorporating a mechanical spring reset method, the 1060 g assembly complies with VDMA24364-B1/B2-L LABS conformity and functions within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4577
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4577.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Manual
- Normal nominal ow rate (normalized to DIN 1343)
- 680 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Reset method
- Mechanical spring
- Nominal width
- 7 mm
- Sealing principle
- Soft
- Type of control
- Piloted
- Flow direction
- Non-reversible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1060 g
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4577. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
