Festo
4578

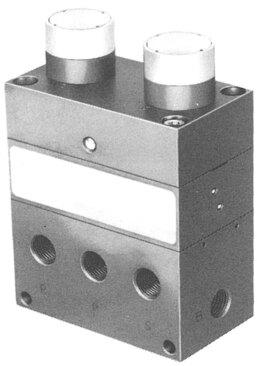

Pushbutton valve T-5/3-1/4
The Festo part number 4578 is a manually actuated industrial component featuring a 5/3-way closed valve function and a piloted type of control with a soft sealing principle. Operating within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) and a nominal width of 7 mm, this unit delivers a normal nominal flow rate of 680 l/min through G1/4 pneumatic working ports 1, 2, and 3. Constructed with VDMA24364-B1/B2-L LABS conformity and a product weight of 1160 g, the device functions within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4578
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4578.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Manual
- Normal nominal ow rate (normalized to DIN 1343)
- 680 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Nominal width
- 7 mm
- Sealing principle
- Soft
- Type of control
- Piloted
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 1160 g
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G1/4
