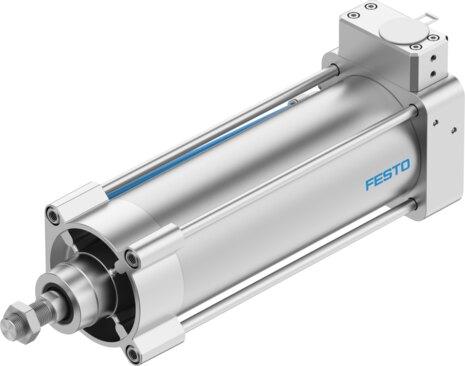

Reference imageConfirm configuration by manufacturer part number.
Festo
4588304
Linear actuator DFPI-100- -ND2P-C1V-NB3P-R-A
The Festo 4588304 is a double-acting industrial component based on the ISO 15552 norm featuring a 100 mm piston diameter, an actuator size of 100, and a stroke range of 40 mm to 990 mm with no cushioning. Constructed with a piston, piston rod, tie rod 1, and cylinder barrel, it operates within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar, 43.5 psi to 116 psi) at a nominal operating pressure of 0.6 MPa (6 bar, 87 psi). Position sensing is provided by an integrated linear potentiometer utilizing the potentiometer measuring principle with reverse polarity protection for the operating voltage, setpoint, and initialization connection. The unit requires a nominal DC operating voltage of 24 V within a range of 21.6 V to 26.4 V, a maximum current consumption of 220 mA, and features a 4 mA to 20 mA setpoint input alongside a 4 - 20 mA analog output, supported by RCM compliance mark and KC-EMV certifications for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4588304
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4588304.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 100
- Stroke
- 40 mm...990 mm
- Piston diameter
- 100 mm
- Based on norm
- ISO 15552
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- With integrated linear potentiometer
- Measuring principle of linear potentiometer
- Potentiometer
- Reverse polarity protection
- Initialization connection | For operating voltage | For setpoint
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Analog output
- 4 - 20 mA
- DC operating voltage range
- 21.6 V...26.4 V
- Max. current consumption
- 220 mA
- Nominal operating voltage DC
- 24 V
- Setpoint input
- 4 mA...20 mA
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions
