4654766

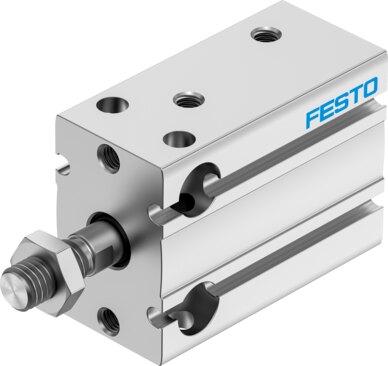

Name: Festo 4654766 Compact cylinder DPDM-...-20- -
Brand: Festo

Compact cylinder DPDM-...-20- -

The Festo part number 4654766 is an industrial component featuring a 20 mm piston diameter, an adjustable stroke ranging from 5 mm to 50 mm, and elastic cushioning rings or pads at both ends. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 bar to 8 bar pressure range, this double-acting and single-acting unit delivers a theoretical force of 158 N to 188 N at 6 bar. Constructed with a profile barrel, piston, and piston rod alongside a guide rod with a yoke for torsion protection, it functions in any mounting position across an ambient temperature range of -10 °C to 120 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4654766
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4654766.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 5 mm...50 mm
Piston diameter: 20 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting | Pushing | Single-acting | Pulling
Structural design: Piston | Piston rod | Prole barrel
Position sensing: Via proximity switch
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils. | Through piston rod | Through, hollow piston rod | Heat-resistant seals max. 120°C | Piston rod at one end
Protection against torsion/guide: Guide rod with yoke
Operating pressure: 0.1 MPa...0.8 MPa | 1 bar...8 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress | 1 - Low corrosion stress | 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...120 °C
Theoretical force at 6 bar: 158 N...188 N
Theoretical force at 6 bar, retracting: 158 N
Theoretical force at 6 bar, advancing: 158 N...188 N
Type of mounting: Alternatively:

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 4654766. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
