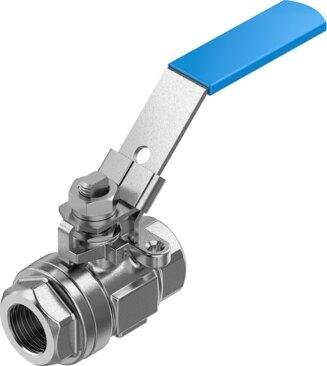

Reference imageConfirm configuration by manufacturer part number.
Festo
4745216
Ball valve VZBE-1/2-T-63-D-2-M-V15V15
The Festo 4745216 is a mechanical 2-way ball valve featuring a cast stainless steel housing, soft sealing principle, and a hand lever with a switching position indication where the slot direction corresponds to the flow direction. This in-line installation component provides a 1/2 NPT fitting connection based on the ASME B1.20.1 norm, a 15 mm inside diameter, a nominal width DN of 15, and a reversible 2/2 valve function with a Kv flow rate of 32 m³/h. Operating at a nominal pressure PN of 63 with a breakaway torque of 5.5 Nm at differential pressure, it handles a medium temperature range of -20 °C to 200 °C for vapor, compressed air as per ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids in any mounting position. RoHS compliant and meeting VDMA24364 Zone III LABS conformity, this RoHS compliant part is ready for procurement. Submit part number 4745216, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4745216
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4745216.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve with hand lever
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 1/2 NPT
- Switching position indication
- Slot direction = ow direction
- Inside diameter
- 15 mm
- Nominal width DN
- 15
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 5.5 Nm
- Based on norm
- ASME B1.20.1
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 32 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
- Seat seal material
- PTFE
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4745216. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
