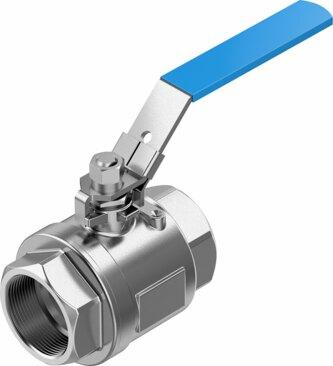

Reference imageConfirm configuration by manufacturer part number.
Festo
4745223
Ball valve VZBE-2-T-63-D-2-M-V15V15
The Festo 4745223 is an industrial 2-way mechanical ball valve featuring a soft sealing principle and a manual hand lever with a slot direction indicator corresponding to the flow direction. Constructed with a cast stainless steel housing and a 50 mm inside diameter with a DN 50 nominal width, this 2/2 reversible flow component utilizes a 2 NPT fitting connection based on the ASME B1.20.1 norm. It operates with a nominal pressure PN of 63, a 420 m³/h flow rate Kv, and a breakaway torque of 40 Nm at nominal differential pressure across a medium temperature range of -20 °C to 200 °C for vapor, compressed air, inert gas, water, and neutral liquids. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4745223
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4745223.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve with hand lever
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 2 NPT
- Switching position indication
- Slot direction = ow direction
- Inside diameter
- 50 mm
- Nominal width DN
- 50
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 63
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 40 Nm
- Based on norm
- ASME B1.20.1
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 420 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Cast stainless steel
- Material number of housing
- 1,4408
- Seat seal material
- PTFE
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4745223. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
