Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

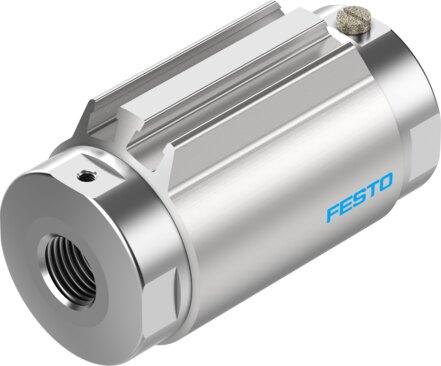

Reference imageConfirm configuration by manufacturer part number.
Festo
4748312
Pinch valve VZQA-C-M22C-6-GG-ALALE-4
The Festo 4748312 is a pneumatically operated pinch valve featuring a soft sealing principle, an in-line installation design, and a nominal width DN of 6 with G1/4 fitting connections. Configured as a 2/2-way closed, monostable valve with a mechanical spring reset, it accommodates a medium pressure range of 0 MPa to 0.4 MPa and an operating pressure range of 0.35 MPa to 0.6 MPa for compressed air and water media up to 4000 mm²/s in viscosity. This externally controlled component supports reversible flow direction, any mounting position, and auxiliary pilot air via an M3 port using compressed air meeting ISO 8573-1:2010 [7:4:1] standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4748312
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4748312.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pinch valve, pneumatically operated
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- G1/4
- Nominal width DN
- 6
- Valve function
- 2/2-way, closed, monostable
- Flow direction
- Reversible
- Medium pressure
- 0 MPa...0.4 MPa | 0 bar...4 bar | 0 psi...58 psi
- Note on the medium pressure
- Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
- Operating pressure
- 0.35 MPa...0.6 MPa | 3.5 bar...6 bar | 50.75 psi...87 psi
- Nominal pressure of tting PN
- 10
- Burst pressure
- 1.6 MPa | 16 bar | 232 psi
- Reset method
- Mechanical spring
- Type of control
- Externally controlled
- Auxiliary pilot air port 12
- M3
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:1]
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:1] | Water
- Max. viscosity
- 4000 mm²/s
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4748312. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
