Festo
4762847

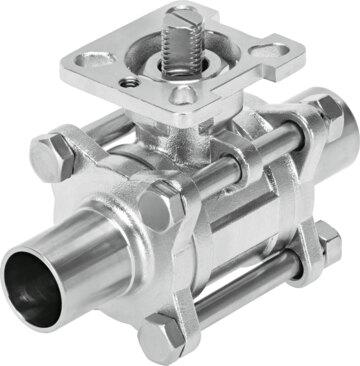

Ball valve VZBD-1/2-W1-16-T-2-F0304-V14V14
The Festo part number 4762847 is a mechanical 2-way soft-sealed ball valve featuring a 2/2 valve function, a nominal width DN of 15, and an inside diameter of 9.6 mm for in-line installation in any mounting position. Conforming to ASME BPE and ISO 5211 norms with F0304 flange hole patterns and ASME-BPE weld-on fittings, this RoHS compliant component handles media including vapor, compressed air, inert gas, water, and neutral liquids across a medium temperature range of -20 °C to 200 °C at a nominal pressure PN of 16. It provides a reversible flow direction with a Kv flow rate of 13 m³/h and requires a breakaway torque of 7 Nm at nominal pressure PN. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4762847
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4762847.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on according to ASME-BPE
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0304
- Inside diameter
- 9.6 mm
- Nominal width DN
- 15
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 7 Nm
- Based on norm
- ASME BPE | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 13 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
