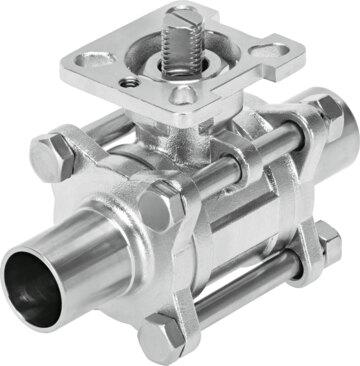

Reference imageConfirm configuration by manufacturer part number.
Festo
4762851
Ball valve VZBD-2-W1-16-T-2-F0507-V14V14
The Festo 4762851 is a mechanical 2-way ball valve with a nominal width DN of 50, an inside diameter of 47.7 mm, and a nominal pressure PN of 16. Built on ASME BPE and ISO 5211 norms with an F0507 flange hole pattern and weld-on ASME-BPE fitting connection, this 2/2 soft-sealing component features a reversible flow direction, a flow rate Kv of 364 m³/h, and a breakaway torque of 44 Nm at nominal pressure. It accommodates medium temperatures ranging from -20 °C to 200 °C across vapor, compressed air conforming to ISO 8573-1:2010 [-:-:-], inert gas, water, and neutral liquids in any mounting position. RoHS compliant and meeting VDMA24364 Zone III LABS conformity, it utilizes slot direction for switching position indication. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4762851
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4762851.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on according to ASME-BPE
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0507
- Inside diameter
- 47.7 mm
- Nominal width DN
- 50
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 44 Nm
- Based on norm
- ASME BPE | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 364 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
