Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

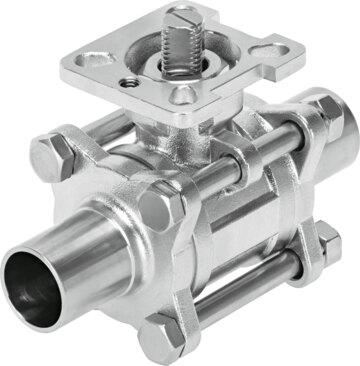

Reference imageConfirm configuration by manufacturer part number.
Festo
4762852
Ball valve VZBD-21/2-W1-16-T-2-F0710-V14V14
This Festo 2-way industrial ball valve, part number 4762852, features a mechanical soft-sealing design with a nominal width DN of 65 and an inside diameter of 60.3 mm. Built for in-line installation in any mounting position with ASME-BPE weld-on fitting connections and an F0710 flange hole pattern, it operates on a nominal pressure PN of 16 with a reversible flow direction and a flow rate Kv of 608 m³/h. The component handles a medium temperature range of -20 °C to 200 °C across vapor, compressed air, inert gas, water, and neutral liquids, exhibiting a breakaway torque of 79 Nm at nominal differential pressure based on ASME BPE and ISO 5211 norms. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4762852
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4762852.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on according to ASME-BPE
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0710
- Inside diameter
- 60.3 mm
- Nominal width DN
- 65
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 79 Nm
- Based on norm
- ASME BPE | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 608 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4762852. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
