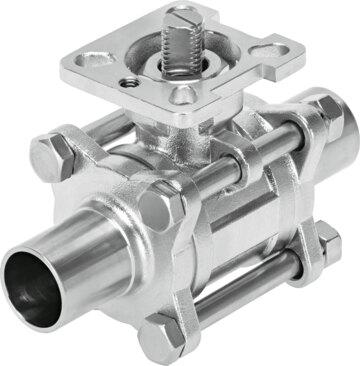

Reference imageConfirm configuration by manufacturer part number.
Festo
4762853
Ball valve VZBD-3-W1-16-T-2-F0710-V14V14
The Festo 4762853 is a mechanical 2-way ball valve featuring a soft sealing principle and an inside diameter of 72.9 mm with a nominal width DN of 80. Designed for in-line installation with a weld-on fitting connection according to ASME-BPE, this 2/2 valve operates with a reversible flow direction and handles a nominal pressure of fitting PN 16, a flow rate Kv of 917 m³/h, and a medium temperature range from -20 °C to 200 °C. It is based on ASME BPE and ISO 5211 norms, incorporates an F0710 flange hole pattern, and is compatible with vapor, compressed air, inert gas, water, and neutral liquids. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4762853
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4762853.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on according to ASME-BPE
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0710
- Inside diameter
- 72.9 mm
- Nominal width DN
- 80
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 140 Nm
- Based on norm
- ASME BPE | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 917 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
