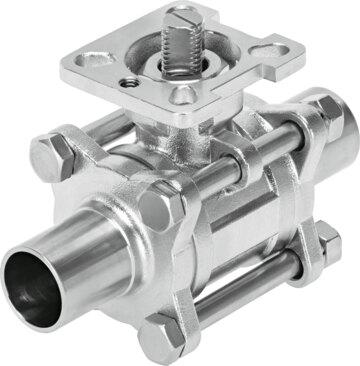

Reference imageConfirm configuration by manufacturer part number.
Festo
4762854
Ball valve VZBD-4-W1-16-T-2-F1012-V14V14
The Festo 4762854 is a 2-way mechanical soft-sealed ball valve featuring a nominal width DN of 100, an inside diameter of 97.5 mm, and an in-line weld-on fitting connection conforming to ASME-BPE. Built on ASME BPE and ISO 5211 norms with an F1012 flange hole pattern and reversible flow direction, this 2/2 valve handles a nominal pressure PN of 16, a flow rate Kv of 1641 m³/h, and medium temperatures ranging from -20 °C to 200 °C. It requires a breakaway torque of 170 Nm at nominal differential pressure, provides switching position indication via slot direction matching flow direction, and is compatible with vapor, inert gas, water, neutral liquids, and compressed air as per ISO 8573-1:2010 [-:-:-] in any mounting position. Submit the exact part number, quantity, and application requirements for a quote on this RoHS-compliant and VDMA24364 Zone III LABS conformity component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4762854
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4762854.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on according to ASME-BPE
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F1012
- Inside diameter
- 97.5 mm
- Nominal width DN
- 100
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 170 Nm
- Based on norm
- ASME BPE | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 1641 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
