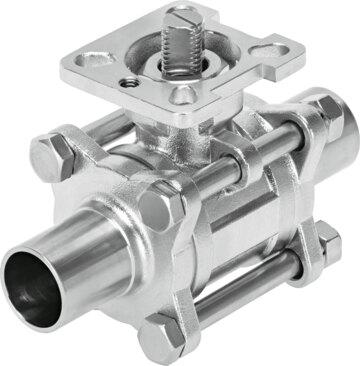

Reference imageConfirm configuration by manufacturer part number.
Festo
4783597
Ball valve VZBD-1-W3-16-T-2-F0405-V14V14
This Festo 2-way ball valve (Part Number 4783597) features mechanical actuation and a soft sealing principle for in-line installation with a weld-on end according to ISO 1127. The 2/2 valve function supports a nominal width DN of 25, an inside diameter of 29.7 mm, a nominal pressure PN of 16, and a flow rate Kv of 135 cubic meters per hour across a medium temperature range of -20 degrees Celsius to 200 degrees Celsius. Based on ISO 1127 and ISO 5211 norms, it accommodates vapor, compressed air, inert gas, water, and neutral liquids with a reversible flow direction and a breakaway torque of 15 Nm at nominal pressure PN. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4783597
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4783597.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ISO 1127
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0405
- Inside diameter
- 29.7 mm
- Nominal width DN
- 25
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 15 Nm
- Based on norm
- ISO 1127 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 135 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4783597. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
