Festo
4783600

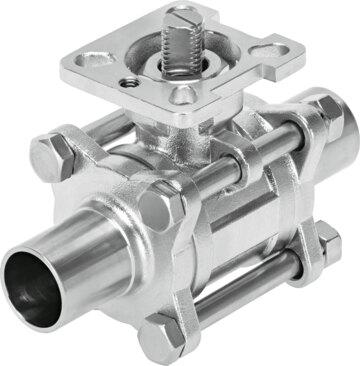

Ball valve VZBD-2-W3-16-T-2-F0507-V14V14
The Festo 4783600 is a mechanical 2-way ball valve featuring a soft sealing principle, a nominal width DN of 50, and an inside diameter of 56.3 mm for in-line installation with a weld-on end according to ISO 1127. Engineered with a 2/2 valve function and reversible flow direction, this component handles a nominal pressure PN of 16, a flow rate Kv of 532 m³/h, and medium temperatures ranging from -20 °C to 200 °C across vapor, compressed air, inert gas, water, and neutral liquids. It incorporates an F0507 flange hole pattern, a breakaway torque of 44 Nm at nominal differential pressure, and slot direction flow indication based on ISO 5211 norms. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4783600
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4783600.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Weld-on end according to ISO 1127
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0507
- Inside diameter
- 56.3 mm
- Nominal width DN
- 50
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 44 Nm
- Based on norm
- ISO 1127 | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 532 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4783600. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
