Festo
4795668

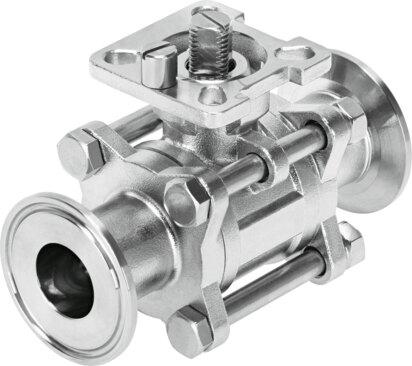

Ball valve VZBD-1-S1-16-T-2-F0405-V14V14
The Festo part number 4795668 is a mechanical 2-way soft-sealed ball valve featuring a nominal width DN of 25, a 22.1 mm inside diameter, and a Kv flow rate of 74 m³/h. Built for in-line installation in any mounting position based on ASME BPE and ISO 5211 norms, this 2/2 reversible valve operates at a nominal pressure PN of 16 with a breakaway torque of 15 Nm at nominal pressure. It handles a medium temperature range from -20 °C to 200 °C across vapor, compressed air, inert gas, water, and neutral liquids, incorporating a slot direction flow position indicator and an F0405 flange hole pattern. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this RoHS-compliant and VDMA24364 Zone III LABS conformity component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4795668
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4795668.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Based on Clamp ASME-BPE
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F0405
- Inside diameter
- 22.1 mm
- Nominal width DN
- 25
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 16
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 15 Nm
- Based on norm
- ASME BPE | ISO 5211
- Medium
- Vapor | Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...200 °C
- Flow rate Kv
- 74 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Housing material
- Cast stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4795668. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
